Make PROFITABLE Sewage Treatment Systems, at
lesser capital costs,drastically lesser space
Lowest running costs
and Nil hassles of conventional maintenance!!!
USE METHODICAL OZONATION cum BIO-OXYGENATION AT RAW STAGE!
Treat Sewage like its 2024 AD.
Not like 1924 AD!
PATENTED TECHNOLOGY
FORMALLY GUARANTEED TREATED WATER PARAMETERS :
O&G - less than 10
BOD - less than 10
COD - less than 30
Ammoniacal Nitrogen - less than 25
Total Kjeldahl Nitrogen - less than 50
Total coliform - less than 50
Colour - Colourless, becomes completely transparent after filtration
Odour - Fully Odourless
and many more, including pH, NOx, total phosphorus, free ammonia, etc.
Few Actual site videos of Ozo-Bioxy STPs
(find other site images & Test Report from actual site in catalog attached) :
Methodical OZONATION cum BIO-OXYGENATION of Raw Sewage :
https://tinyurl.com/3fhfcvj5
Recirculation of Raw Sewage :
https://tinyurl.com/mr29d7fk
Full treatment plant with tanks :
https://tinyurl.com/2bdffb9r
Full treatment plant with tanks :
https://tinyurl.com/2ew2wty6
Clean, raw sewage after OZONATION cum BIO-OXYGENATION even before Filtration :
https://tinyurl.com/2v5t4ncj
Clean, Final Treated sewage water :
https://tinyurl.com/3fkbwdu9

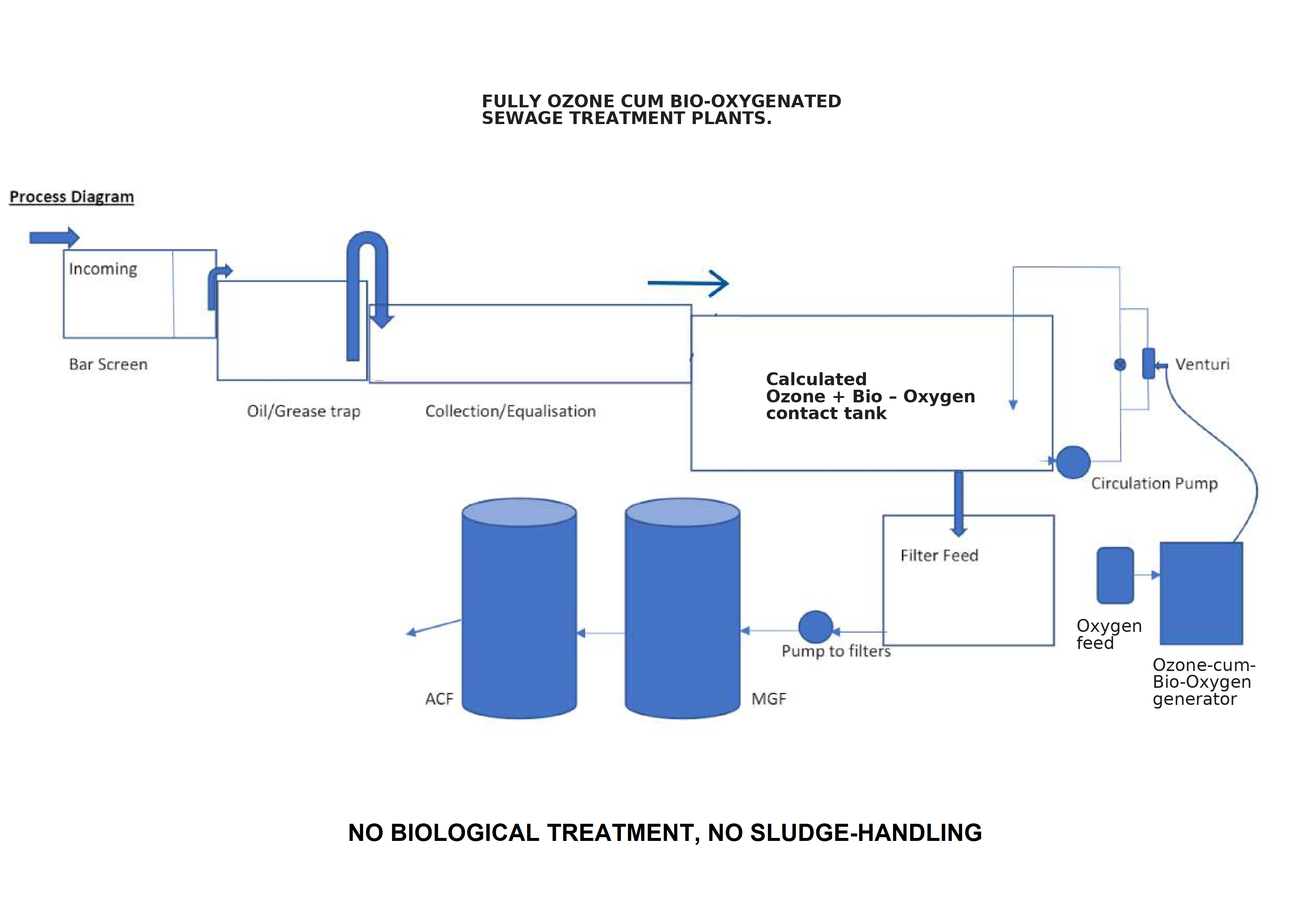

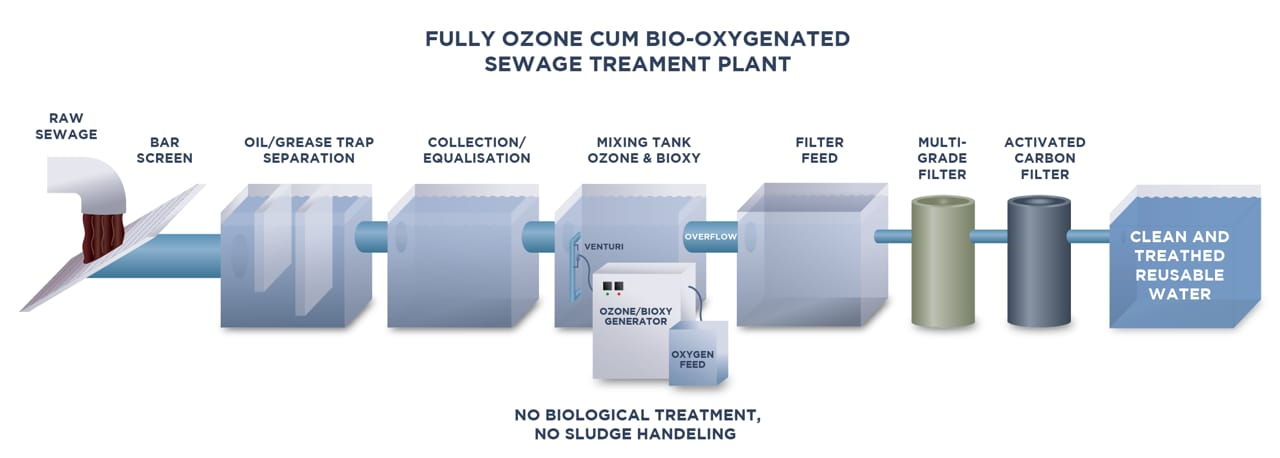

The general List of electromechanical equipment are as follows :
Bar Screen
O&G Trap (optional, as per project need)
TWH-make, Patented, Ozonation cum Bio Oxygen Plasma system, for Raw Sewage treatment
Water chiller for cooling the Ozo-Bioxy system, and prevent drainage of cooling water (Optional, at extra cost)
Agitator inside the contact tank for proper mixing
Transfer pump from Collection to Ozone-mixing - 1W &1S
Ozone Re-Circulation pump - 1W &1S
Filter-Feed Pump - 1W &1S
Filtration systems : MGF & ACF
CPVC Pipelines & Fittings
Electrical Control Panel
The End User’s Scope are as follows :
-
The civil requirements to be done by the end-user are :
- Collection Tank, Ozone-Mixing Tank, Filter Feed Tank
- Treated water tank (Optional)
- Bar Screen chamber / O&G Chamber Other requirements under the scope of end-user are :
- Electrical power supply for pumps, Ozonation equipment & oxygen feed for ozonation
- Shaded area for the STP, especially 30-50sq.ft for the Ozonation cum Bioxy system, for protection against rainfall and direct sunlight.
- Base for Pumps & Ozonation system.
- Pipelines upto the STP
- Power lines and water line should be ready during installation of STP.
